Sideshaft Vacuum Engine photo

Click image for larger view.

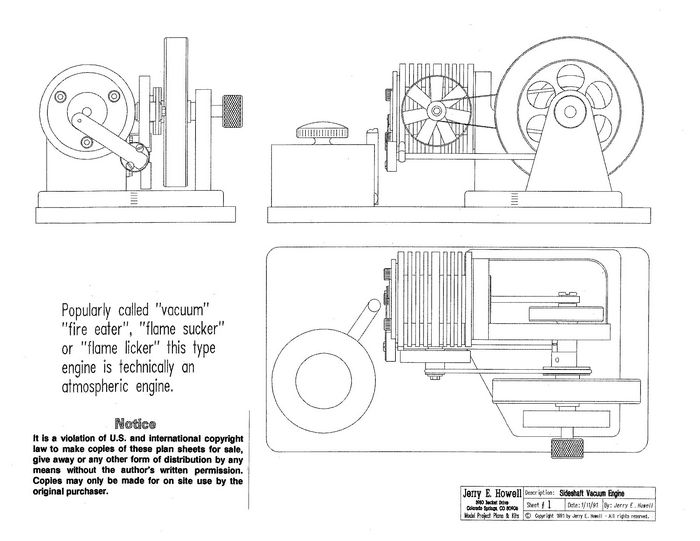

Sideshaft Vacuum Engine Plans

These are also known by some as "Fire Eaters" or "Flame Suckers" but technically, they are "Atmospheric" engines.

My unique valve mechanism operates from an oscillating side shaft. The engine is shown powered by one of my Mini Propane Burners (a separate plans set) at the front of the engine. You can run yours with an alcohol lamp if you like. A belt driven fan provides some air cooling, it also adds considerable interest to the engine. There is no ignition or carburetor to cause problems. The engine can operate from 200 RPM up to 3,000 RPM or more! As hot-air engines - not stirling cycle - they are unusual in that they make a popping sound not unlike an internal combustion engine.

I built this engine 25 years ago. It is easy to build, but it is small and has some small parts in it. For a larger more refined "atmospheric" engine, see the "4-in-1" Vacuum Engine below.

The plans set consists of 4 sheets of drawings and 1 sheet of construction and assembly notes.

Specifications:  Flywheel Diameter: 2-3/8", Cylinder Bore: .610", Piston Stroke: 7/8", Overall Length: 4-1/2"  Experience Level: 1

Materials Set: (1) Graphite rod to make piston, (2) 3/16" ID x 3/8" OD x 1/8" thick precision ball bearings.  Materials set sold separately.



"Thanks for the great tips on your web site. I have ordered plans from you in the past, great quality, prices more than reasonable. Keep up the good work." - Mike Nay (West Valley City, Utah)

     View Plan Sample   All Customer Comments

Download PDF Now $14.40, Save 10% and No Shipping Cost!

Or for standard U.S. Postal Service shipping, select 'Add to Cart'  below:

[Shipping & Conditions]  [Mail in Orders]  [View Shopping Cart]  [Shopping Cart Help]

Sideshaft Engine Plans
Item ID: SIDESHAFT-P
$16.00
+Shipping
Sideshaft Materials Set
Item ID: SIDESHAFT-SET
$15.00
+Shipping
