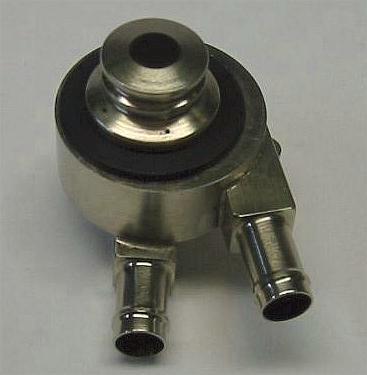

Howell Magnetic Drive Centrifugal Water Pump Plans

This is the high performance water pump I designed for my "Howell V-Four" engine. Ordinary pumps have a shaft that enters the case to drive the impeller. This requires a lubricated shaft seal to prevent leakage. In miniature sizes it can be a challenge to have a seal that prevents leaks, not create excessive friction on the shaft and be reliable over long periods of time. I designed this pump to satisfy all these requirements. There is no shaft that enters the pump case, so no seal is needed at all. It takes very little power  to turn even at high water delivery rates. The pump housing internal has an easy to produce simulated involute spiral shape with a cutwater for efficient operation and high delivery. The pump is made almost entirely of brass. I nickel plated mine for looks, but that has nothing at all to do with operation or anything else.

The plans set consists of two sheets of drawings and one sheet of construction notes.

Specifications: Housing Diameter: 1.125", Housing Thickness:  .490", Impeller Diameter: .700", Suction & Discharge, Port Diameters:   .250"

Materials Set:  (1) 1-1/2" length of 1" dia. delrin rod to make pump cover, (1) 13/16" x 1/16" "O" ring cover seal, (2) 1/4" ID X 3/8" OD ball bearings for drive pulley, (10) 1/8" dia. rare earth magnets to drive impeller.  Materials set sold separately.



"What a pleasure to do business with an honest man, thanks so much for the $10.00 returned. I received the kit in good shape - the plans arrived today and the drawings are beautiful. I feel as if I have gone back in time to a period when quality was important." - Fred Bruce (Boca Raton, Florida)

   All Customer Comments

 Buy Now $7.20, Save 10% and No Shipping Cost!

Or for standard U.S. Postal Service shipping, select 'Add to Cart'  below:


[Shipping & Conditions]  [Mail in Orders]  [View Shopping Cart]  [Shopping Cart Help]

Water Pump Plans
Item ID: PUMP-P
$8.00
+Shipping
Water Pump Materials Set
Item ID: PUMP-SET
$13.00
+Shipping
