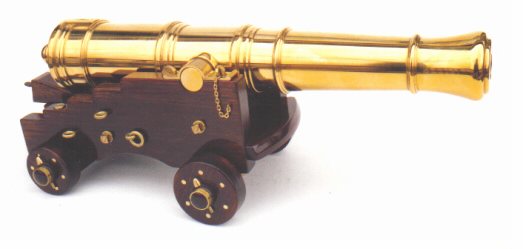

  Naval Cannon photo

Click image for larger view.
"1779" 24 Pounder Naval Cannon

A close replica to one of the 24 pound guns used on the ship USS Constitution.

The original guns were 10 feet long and fired 24 pound iron balls. Canons of that era were usually of cast iron but sometimes bronze, and with oak carriages. Everything on the model works just as on the originals. If you want to be historically correct rather than have a polished mantle piece like mine, the barrel and all fittings should be black and the carriage of oak. Either way, it is an impressive model that will take "center stage" on your fireplace mantle, book shelf or desk.

The plans set consists of 8 sheets of drawings, an info sheet and a sheet of construction and assembly notes.

Specifications: Scale: 1/10th, Length: 12-1/2", Height: 4-1/4", Bore: 9/16"




"Your plans look the best I have seen." - H. Schultz, Industrial Tool & Die (Schofield, Wisconsin)

     View Plan Sample     All Customer Comments

Save 10! Download a PDF of the plans NOW for $15.30 by clicking ==> Buy Now

Or for standard U.S. Postal Service shipping, select 'Add to Cart'  below:

[Shipping & Conditions]  [Mail in Orders]  [View Shopping Cart]  [Shopping Cart Help]

1779 Naval Cannon Plans
Item ID: 1779-P
$17.00
