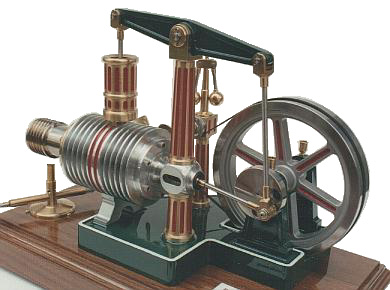

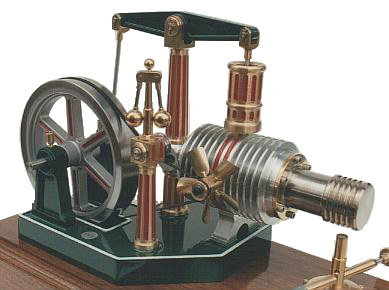

Beamer Stirling Cycle Beam Engine

Beamer represents a large Victorian style beam engine that could have existed in the mid to late 1800's. It is a unique design and nothing like it has ever been done before. A belt driven cooling fan allows the engine to operate continuously at a temperature only slightly above ambient! All shafts are fitted with ball bearings for a smooth running and maintenance free engine. An operating fly ball governor which is driven by the fan belt adds much interest to the engine, but it doesn't regulate the engine speed. The engine runs at a nice leisurely pace from a 1/4" dia. x 5/16" tall flame of an alcohol lamp, or one of my mini propane burners as shown.

The plans set consists of 15 sheets of drawings and two sheets of construction notes.

Specifications: Flywheel Diameter: 4.3", Cylinder Bore: .600", Piston Stroke: 1.0", Overall Height: 6.05", Overall Length: 10", Experience Level: 9

Materials Set: (1) 5/8" dia. x 2" long graphite rod for piston, (2) .250" x .500" x .187" ball bearings, (2) .187" x .375" flanged bearings, (4) .156" x .312" flanged bearings, (1) 1/2" dia. x 1-1/2" long delrin rod, (1) 1/4" dia. x 1-1/2" long delrin rod.  Materials set sold separately.



"Just thought I'd let you know I received the Beamer plans & kit. As usual they are very nice." - Chris Anthony (Howard, Ohio)

     View Plan Sample   All Customer Comments

  Buy Now $21.60,  Save 10% and No Shipping Cost!
