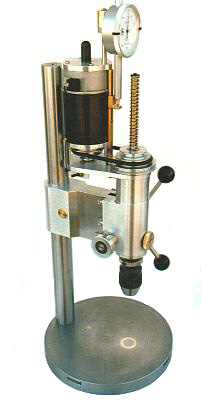

Precision Mini Drill Press Plans

The Precision Mini Drill Press is designed to handle up to 1/4" (.250") drill bits. It fills a need for a drill press between my Micro Drill Press and the regular commercial 1/2" to 5/8" bench drill presses. The unit is machined primarily from aluminum alloy bar stock and drill rod and the base is machined from a cast iron lifting weight. The drill press features an adjustable quill depth stop, quill lock, a shop made electro-magnetic base/table and provisions for a 2" travel dial drilling depth indicator for high precision drilling depth.

It is powered by a high torque 2-1/2" diameter permanent magnet field DC ball bearing motor. Speed can be adjusted using a variable voltage DC power supply, and/or also by choosing one of three steps on the pulleys.

There are a lot of other ways that you can think of to power yours. One is to use a universal type AC motor such as on a sewing machine and a light dimmer to vary the RPM. The quill feed is by standard rack and pinion gear.

The plans set consists of 10 sheets of drawings and 1 sheet of construction notes.

Specifications

Recommended Chuck

 Albrecht 65-J1
 Drilling Capacity

 0 - 1/4"
 Quill Diameter

 1"
 Quill Travel

 2-1/4"
 Spindle CL to Column

 4-1/16"
 Column Diameter

 1-1/4"
 Column Height

 16-1/4"
 Table Diameter

 8"



"As an experienced mechanical draftsman (in a past career!), I can appreciate the detail and quality of the drawings." - Lawrence Keating (Victoria, British Columbia, Canada)

     View Plan Sample     All Customer Comments

Buy Now  $19.80, Save 10% and No Shipping Cost!

Or for standard U.S. Postal Service shipping, select 'Add to Cart'  below:

[Shipping & Conditions]  [Mail in Orders]  [View Shopping Cart]  [Shopping Cart Help]

Mini Drill Press Plans
Item ID: MINIDRILL-P
$22.00
+Shipping
3/16" x 3-1/4" OD O-Ring
Drive Belt

Item ID: MINIDRILL-O
$2.00
+Shipping
